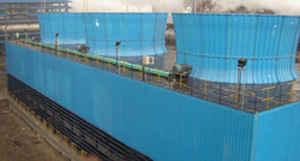

中高溫降工業型GFN系列方形逆流式玻璃鋼冷卻塔
作者：admin 來源： 日期：2012-10-19 16:53:00
標簽：
中高溫降工業型GFN系列方形逆流式玻璃鋼冷卻塔主要參數
| 型號 | τ＝28℃冷卻水量(m3/h) | τ＝27℃冷卻水量(m3/h) | 主要尺寸 | |||||
| Δt=10℃ | Δt=20℃ | Δt=25℃ | Δt=10℃ | Δt=20℃ | Δt=25℃ | 總高度 | 寬度B | |
| GFNL-75 copyright dedecms GFNDP-75 GFNGP-75 |
75 | 66.9 | 65.8 | 86.3 | 73.6 | 71.8 | 4050 4670 4970 |
2600 |
| GFNL-100 GFNDP-100 GFNGP-100 |
100 | 89.2 | 87.7 | 115.0 | 98.1 | 95.7 | 4050 4670 4970 |
3000 |
| GFNL-150 GFNDP-150 GFNGP-150 |
150 | 137.4 | 136.2 | 172.2 | 150.2 | 147.7 | 4840 5460 5760 |
3600 |
| GFNL-200 GFNDP-200 GFNGP-200 |
200 | 182.8 | 181.3 | 229.1 | 199.8 | 196.5 | 5010 本文來自織夢 5690 5990 |
4300 |
| GFNL-250 GFNDP-250 GFNGP-250 |
250 | 228.2 | 226.3 | 286.0 | 249.4 | 245.3 | 5300 6040 6340 |
4800 |
| GFNL-300 GFNDP-300 GFNGP-300 |
300 | 273.6 | 271.3 | 342.9 | 299.1 | 294.1 | 5900
copyright dedecms 6700 7000 |
5300 |
| GFNL-400 GFNDP-400 GFNGP-400 |
400 | 364.4 | 361.4 | 456.7 | 398.3 | 391.8 | 6140 6980 7280 |
6000 |
| GFNL-500 GFNDP-500 GFNGP-500 |
500 | 455.2 | 451.5 | 570.5 | 497.6 | 489.4 | 6440 dedecms.com 7290 7590 |
6800 |
| GFNL-600 GFNDP-600 GFNGP-600 |
600 | 546.0 | 541.5 | 684.3 | 596.9 | 587.1 | 6950 7900 8200 |
7300 |
| GFNL-700 GFNDP-700 GFNGP-700 |
700 | 638.0 | 632.7 | 799.6 | 697.4 | 685.9 | 7150 內容來自dedecms 8100 8400 |
7800 |
| 型號 | 風量 (m3/h) |
風機直徑 (mm) |
電機功率 (kW) |
重量 | 進水壓力 104Pa |
噪聲 dB(A)
dedecms.com Dm |
當量直徑 Dm(m) | |
| 自重 | 運轉重 | |||||||
| GFNL-75 GFNDP-75 GFNGP-75 |
68000 | 1800 | 3.0/1.5 | 1.73 2.16 2.50 |
1.94 3.04 5.41 |
6.2 | 59.0 | 3.02 |
| GFNL-100 decms GFNDP-100 GFNGP-100 |
88000 | 2100 | 4.0/2.0 | 2.40 2.71 3.21 |
2.68 3.89 7.08 |
6.3 | 60.5 | 3.47 |
| GFNL-150 GFNDP-150 GFNGP-150 |
121000 | 2800 | 5.5/2.7 | 3.10 3.55 4.44 |
3.52 5.26 10.04 |
6.5 | 62.0 | 4.15 |
| GFNL-200 GFNDP-200 GFNGP-200 |
161000 | 3400 | 7.5/3.7 | 4.20 4.84 5.71 |
4.76 7.24 13.66 |
5.8 | 62.0 | 4.94 |
| GFNL-250 GFNDP-250 GFNGP-250 |
201000 | 3800 | 11/5.5 | 5.10 5.90 6.76 |
5.79 8.90 16.67 |
6.0 | 62.5 | 5.51 |
| GFNL-300 GFNDP-300 GFNGP-300 |
241000 | 3800 | 11/5.5 | 6.40 7.38 8.44 |
7.23 11.02 20.50 |
6.4 | 62.5 | 6.08 |
| GFNL-400 GFNDP-400 GFNGP-400 |
321000 | 4200 | 15/7.5 | 8.22 9.48 10.65 |
9.33 14.20 26.16 |
6.5 | 62.5 | 6.88 |
| GFNL-500 GFNDP-500 dedecms.com GFNGP-500 |
401000 | 4200 | 22/11 | 10.60 12.21 13.64 |
12.00 18.22 33.52 |
6.8 | 63.0 | 7.79 |
| GFNL-600 GFNDP-600 GFNGP-600 |
481000 | 4700 | 30/15 | 12.30 14.16 15.73 |
13.97 dedecms.com 21.15 38.71 |
7.0 | 63.8 | 8.36 |
| GFNL-700 GFNDP-700 GFNGP-700 |
560000 | 4700 | 30/15 | 14.90 17.02 18.74 |
16.84 25.05 45.02 |
7.0 | 64.6 | 8.93 |
說明：
1、表中所列為濕球溫度τ=28℃，τ=27℃工況下：Δt=10℃時t1=42℃，t2=32℃；Δt＝20℃時t1=54℃，t2=34℃；Δt=25℃時，t1=60℃，t2=35℃的冷卻水量。
2、表中噪聲值為夜間電機低速運轉， 并下設有斜波填料的數值， 不設斜波填料將比表中數值高5dB(A).
